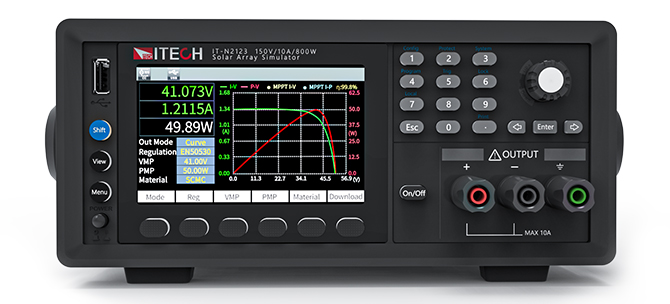

IT-N2100 Series Solar Array Simulator

Accurate simulation of IV characteristic outputs of silicon, GaAs and other types of solar photovoltaic panels

♦ Standard with solar matrix simulation software, support multi-channel control

♦ High-speed current dynamic response to support high speed MPPT tracking speed of microinverter

♦ Up to 1500VDC common mode withstand voltage at output, support for series testing of objects to be tested

Fixed fixed mode, adjustable output impedance, can simulate constant voltage and constant current constant power output

Ultra-low current ripple, high precision sampling, programming and measurement.

Simulate I-V curves under different temperatures and lighting environments.

♦ Built-in EN50530, Sandia, NB/T32004, CGC/GF004, CGC/GF035 5 regulations dynamic model test, and generate reports

♦ Graphical operation interface, real-time display of MPPT status of PV inverter

♦ Dynamic list sequence programming: 100 steps x 20 sets of data

Real-time data and curve recording for further analysis

♦ Simulation of dynamic and static I-V curves of solar panels under cloud shading

Table mode supports I-V curve fitting with 4096 points.

♦ Quickly generate IV curves by setting Voc, Isc, Vmp, Imp through the four-point method.

:: Comprehensive protection: OVP, OCP, OPP, OTP.

Small size: 1/22u single channel

♦ 4.3" LCD HD screen, easy to operate panel and upper computer software

♦ Front and rear panel outputs*1, adapting to desktop and system integration in a variety of occasions

LAN, USB, digital I/O communication interface as standard, support SCPI protocols

*1 Maximum output current 10A at front panel terminals

Product Applications

Test solutions for microinverters, power optimizers

High responsiveness

When the MPPT tracking frequency rises, ordinary simulator power supply response speed is too slow, it will not be able to track the IV curve, and the credibility of the test results is doubtful.IT-N2100 series PV simulator MPPT tracking frequency higher conditions, the output still accurately meets the preset IV curve.

Low current noise

The high fundamental frequency noise of PV simulators affects the inverter's MPPT tracking and current sampling accuracy. the IT-N2100 solar array simulator product has low current noise and high signal purity, which ensures the accuracy of the test.

Five PV models

IT-N2100 solar array simulator comes with 5 kinds of PV models, customers can operate through the front panel, through the built-in IV curve model of the regulations of each country, four-point method, table tracing method, fixed mode or list programming, simulate the output of the IV curve of solar arrays, a large graphical display, real-time view of micro-inverters, power optimizers, etc. Measuring object MPPT tracking status. In addition, the model can also be imported into a file via the instrument panel USB flash drive. When more than one synchronous operation is required, it is more convenient to use the upper computer software solar matrix simulation software to realize synchronous operation.
